這是參加Rancher 深圳站線下活動時候的一個演示項目
現在貼一下整個的步驟，供大家參考~
一，Git
可選的git系統如下，示例用gogs
- Gogs
- Gitlab
- Github
Gogs，Docker-Compose安裝：

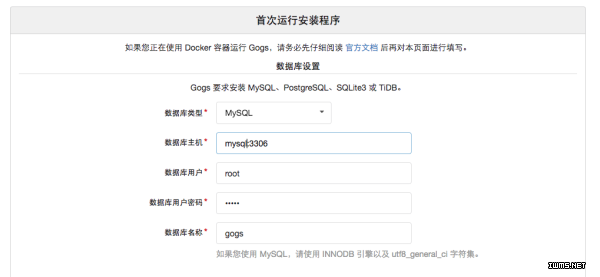

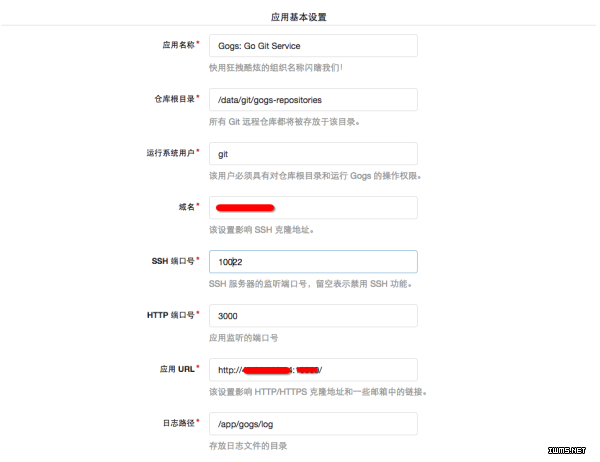

```version: '2'services: app: image: gogs/gogs:0.9.113 ports: - "10022:22" - "10080:3000" volumes: - ./gogs:/data restart: always links: - mysql:mysql environment: - Domain=${GOGS_IP} - SSH_PORT=${GOGS_SSH_PORT} mysql: image: mysql:5.7.13 restart: always volumes: - ./mysql:/var/lib/mysql environment: - MYSQL_ROOT_PASSWORD=${MYSQL_ROOT_PASSWORD} - MYSQL_DATABASE=gogs```# envexport MYSQL_ROOT_PASSWORD={mysql_root_password}export GOGS_IP={ip}export GOGS_SSH_PORT=10022export GOGS_HTTP_PORT=10080# rundocker-compose up -d瀏覽器打開：http:{ip}:{http_port} 完成安裝
登錄后創建測試項目：alpine-drone
二，Drone CI
Drone，Docker-compose安裝（Gogs）：
version: '2'services: drone-server: image: thonatos/alpine-drone # 換成drone/drone:0.5.0 ports: - 80:8000 volumes: - ./drone:/var/lib/drone/ restart: always environment: - DRONE_OPEN=true - DRONE_DEBUG=false - DRONE_GOGS=true - DRONE_GOGS_URL=http://${GOGS_IP}:${GOGS_HTTP_PORT} - DRONE_GOGS_PRIVATE_MODE=true - DRONE_GOGS_SKIP_VERIFY=true - DRONE_SECRET=${DRONE_SECRET} # - DRONE_ADMIN=suyi drone-agent: image: thonatos/alpine-drone # 換成drone/drone:0.5.0 command: agent restart: always depends_on: [ drone-server ] volumes: - /var/run/docker.sock:/var/run/docker.sock environment: - DRONE_SERVER=ws://drone-server:8000/ws/broker - DRONE_SECRET=${DRONE_SECRET}Drone，Docker-compose安裝（Github）：

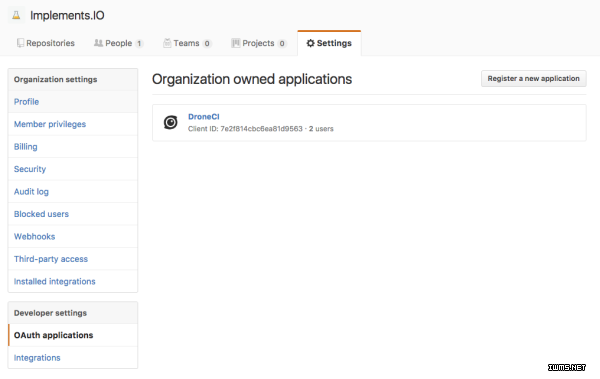

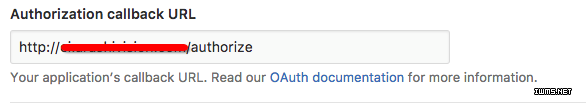

version: '2'services: drone-server: image: drone/drone:0.5.0 environment: DRONE_GITHUB: true DRONE_GITHUB_CLIENT: 95c0282573633eb25e82 DRONE_GITHUB_SECRET: 30f5064039e6b359e075
運行Drone：

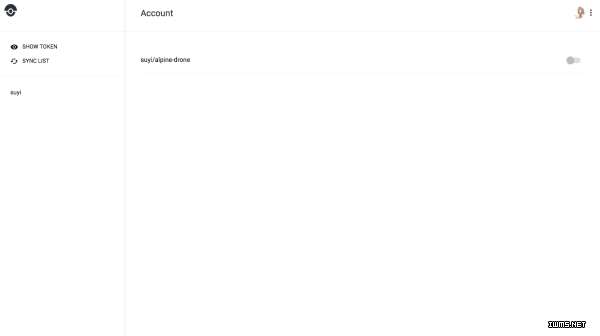

# envexport DRONE_SECRET={secret}# rundocker-compose up -d瀏覽器打開：http://{ip}:{drone_port}，使用安裝gogs設置的管理員賬號密碼登錄，點擊右側account看到當前項目，點開項目旁邊的構建選項即可
三，配置Docker自動構建
下載并配置 drone cli：
# macbrew tap drone/dronebrew install drone --devel# http://readme.drone.io/usage/getting-started-cli/# 下載并配置到PATH中# runexport DRONE_SERVER=http://drone.mycompany.comexport DRONE_TOKEN={} # token剛才drone的管理界面account中點show_token在項目內創建.drone.yml文件，內容如下：
pipeline: docker: # registry: {} # 私有registry地址 # auth: {} # auth_token image: plugins/docker repo: thonatos/alpine-drone # 修改為你對應的repo名字 tags: latest # tags
